Recovery Drive vs System Image: Differences & Full Guide

To help users choose the better system recovery solution: recovery drive vs system image and clarify the differences between these two effective techniques of restoring Windows operating systems, this quick guide will get your queries resolved.

Rosie

By Rosie Updated on November 7, 2024

Share this: instagram reddit

Do I Need Both Recovery Drive and System Image?

When it comes to System Image vs Recovery Drive backup, many people don't know what are their roles. The two options play essential roles in ensuring a comprehensive data recovery strategy.

System Image is ideal when you need to restore the entire system, including the operating system, applications, and files, to its previous state. This option is particularly useful for recovering from a complete system failure or when transferring everything to a new drive.

On the other hand, Recovery Drive is a great choice for backing up critical system files and user settings, allowing you to troubleshoot issues, repair system errors, or restore personalized configurations without affecting your apps and data.

Recovery Drive vs  System Image

What's a Recovery Drive?

A Recovery Drive is a tool that can help you repair or restore your Windows operating system if it becomes corrupted or unbootable. Essentially, it’s a bootable USB drive that contains essential system files and utilities, enabling you to troubleshoot and restore your system without needing to reinstall Windows from scratch.

Usage Scenarios:

  • Particularly useful when your system encounters errors such as a startup failure, a blue screen of death (BSOD), or a corrupted operating system.
  • Can be used to perform troubleshooting tasks, repair system files, and even reset the system to its factory settings, all without needing external installation media.

How to Create a Recovery Drive

Step 1: Plug in a USB drive with at least 8GB of free space (it will be erased during the process).

Step 2: In the Control Panel, type “Recovery” in the search bar, and select Create a recovery drive.

Step 3: Select the option to back up system files to the recovery drive, then click Next. This will allow you to reinstall Windows if you're unable to fix issues with your computer.

Backup System Files to the Recovery Drive

Step 4: Choose your USB flash drive and click Next.

Step 5: Click Create to make a Windows 10 system repair disk. Make sure to back up any important files first, as all data on the drive will be erased, as shown in the image.

Create

Once the process is finished, you may see an option to delete the recovery partition. If you want to free up space on your drive, click Delete and confirm your choice.

Tip: If you don't have a USB flash drive, you can also use a CD or DVD to create a system repair disc in Windows 10.

What's a System Image?

A System Image is an exact, bit-for-bit copy of your entire system, including Windows, installed applications, settings, and personal files. Essentially, it is a complete backup of your system as it exists at the time the image is created. A system image allows you to restore your computer to a specific state, even after a major failure, without needing to reinstall Windows and all your programs.

Usage Explanation:

  • System Recovery: Restore your computer to its previous state after a crash or system failure.
  • Hard Drive Upgrade: Transfer your system and data to a new or upgraded hard drive without reinstalling everything.
  • Testing Changes: Backup your system before making changes, so you can quickly restore it if something goes wrong.

How to Create a System Image

Step 1: Open the Control Panel, find, and click on Windows Backup and Restore.

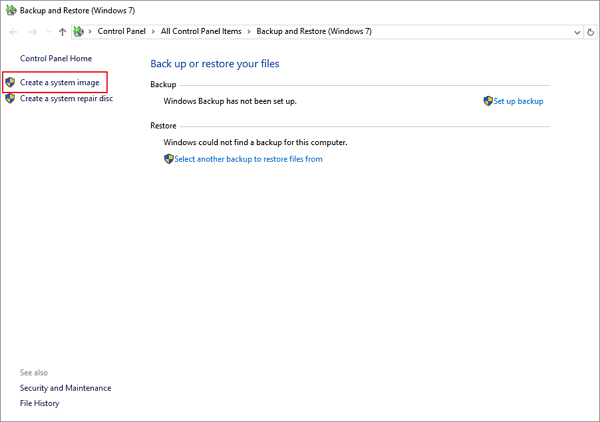

Step 2: On the left side, click Create a system image.

Create a System Image 1

Step 3: Select a drive you can use and click Next.

Note: The drive you choose should be large enough to store the system image roughly the same size as your C drive (around 100GB). Use a drive of at least 128GB, especially if you use a USB flash drive. Make sure the backup drive is not on the same disk as the one you're backing up.

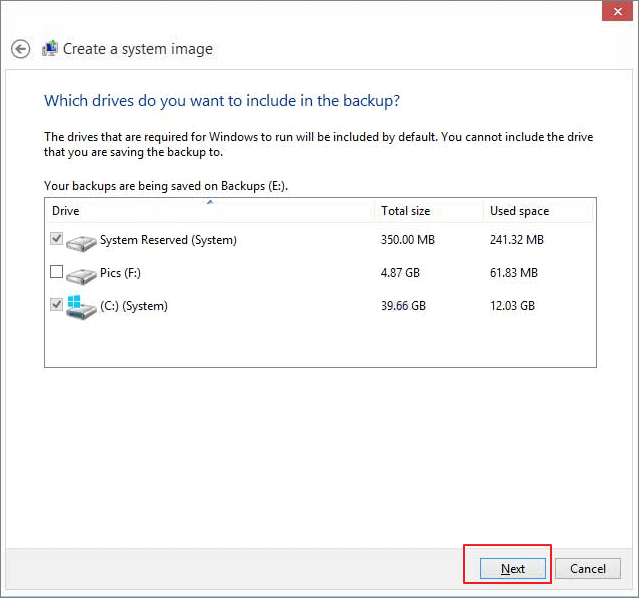

Step 4: Review the default backup selections, including all partitions related to the Windows operating system. Click Next once you’ve confirmed.

Create a System Image 2

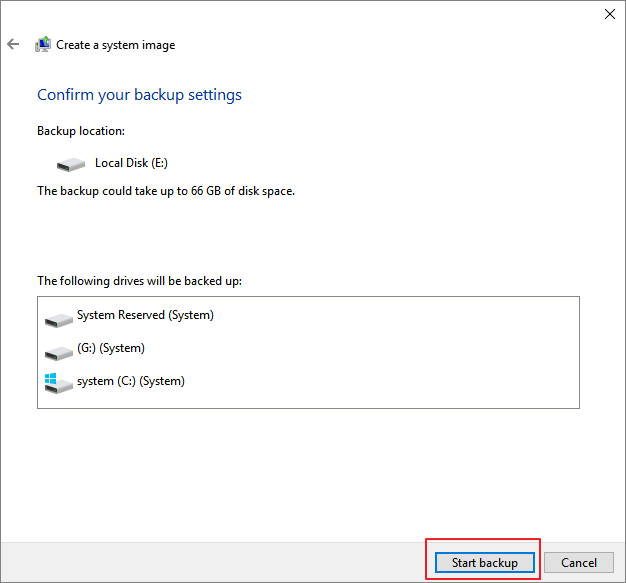

Step 5: Double-check your backup selections and click Start Backup.

Create a System Image 3

★Tips:
 It's a good idea to regularly create a system image backup, as your operating system is always changing with updates, new files, and programs.
 Once created, a system image can be restored using the same utility or from a bootable recovery environment if your system fails.

Create System Image without Large Storage Space

If you need to back up your entire system but don’t have a large external drive or network storage to store it, there’s a way to make system backups without consuming a lot of storage- AOMEI Backupper Standard, a powerful backup tool, offers options to compress backups, reducing the amount of storage needed. By using the below features, you can backup your entire system while minimizing the amount of storage space needed.

AOMEI Backupper
Best System Backup Software
  • Compression Options: AOMEI Backupper allows you to choose compression levels when creating a system image. This reduces the backup size without compromising too much on performance.

  • Backup Scheduling: You can schedule backups to run at specific times, making it easier to maintain regular backups without needing extra storage space.

  • Incremental Backups: Instead of creating full backups each time, it can perform incremental backups, saving only the changes made since the last backup.

How to Backup System with AOMEI Backupper

Step 1: Open AOMEI Backupper Standard and go to Backup > System Backup.

Choose System Backup

Step 2: Choose where you want to save the backup file by clicking the second box. You can store it on an external hard drive, an internal drive, or a network location.

Choose Destination

Step 3: Customize your backup settings by clicking Options, Schedule Backup, and Backup Scheme. Once you've set everything, click Start Backup to begin backing up your installed programs and system files.

Start Backup



Key Backup Settings:

Options: Here, you can choose the compression level for your backup (normal or high). Keep in mind that higher compression may take longer to complete.

Schedule Backup: Set up automatic backups to run daily, weekly, or monthly. This will include everything on your system drive, including newly installed programs and added files.

Scheme Backup: To avoid running out of disk space due to growing backup files, you can set up the software to delete older backups automatically, helping to free up space on your storage device. You can unlock this function by upgrading your plan.

Conclusion

All in all, both Windows Recovery Drive vs System Image play essential roles in maintaining the integrity and safety of your system. The Recovery Drive is great for troubleshooting and repair, allowing you to recover from system errors without losing data or reinstalling the OS. On the other hand, a System Image is ideal for a full, comprehensive backup, ensuring you can restore your entire system to its previous state in the event of a crash or failure.

If storage space is a concern, tools like AOMEI Backupper can help you compress system backups to save space while maintaining the integrity of your backup files. Ultimately, the methods we mentioned above serve different needs, and using them together can offer the most complete protection for your computer.
