[Full Guide] How to Install, Configure and Backup WSUS

What is WSUS

Windows Server Update Services (WSUS) is a Microsoft tool that allows administrators to manage the distribution of updates released through Microsoft Update to computers in a corporate environment. WSUS provides centralized control over the distribution of updates, enabling administrators to approve or decline updates, target specific groups of computers, and ensure that critical updates are deployed in a coordinated manner.

How to install and configure WSUS

Installing and configuring WSUS is a crucial task for managing updates in a Windows Server environment. WSUS allows you to centralize the distribution and approval of updates, making it easier to maintain your server infrastructure. Here's a step-by-step guide on how to install and configure WSUS:

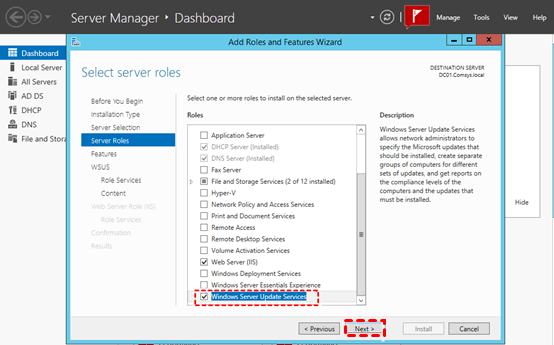

1. To initiate the WSUS installation process, access the Server Manager and navigate to Management, followed by Add Roles and Features. In the ensuing wizard, include the Windows Server Update Services role.

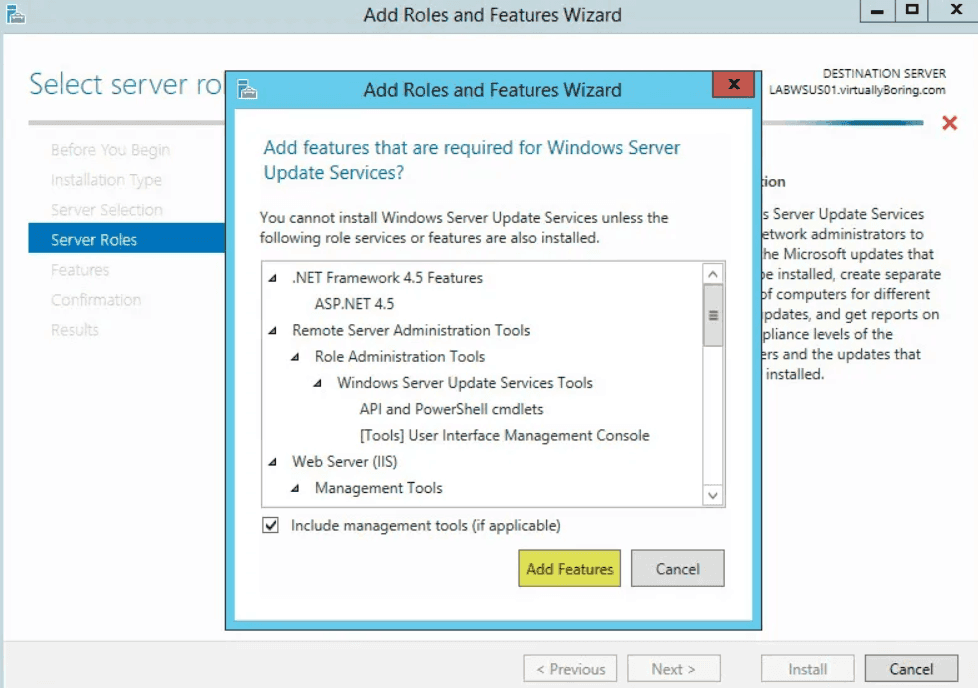

2. This subsequent step will automatically configure all the requisite roles and components, eliminating the need for separate manual configurations.

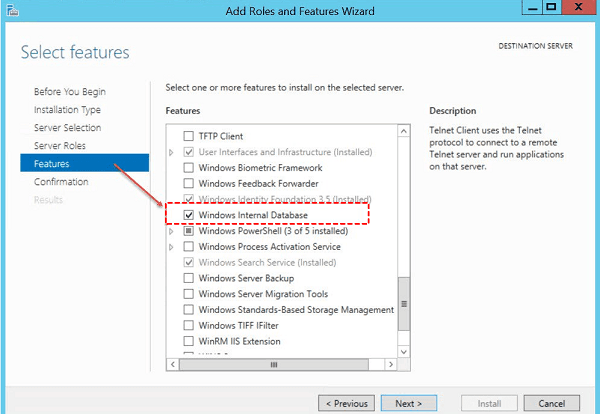

3. WSUS typically recommends utilizing the default storage, the Windows Internal Database (WID). For smaller setups, there is often no compelling reason to set up a dedicated SQL server, as this won't yield significant advantages.

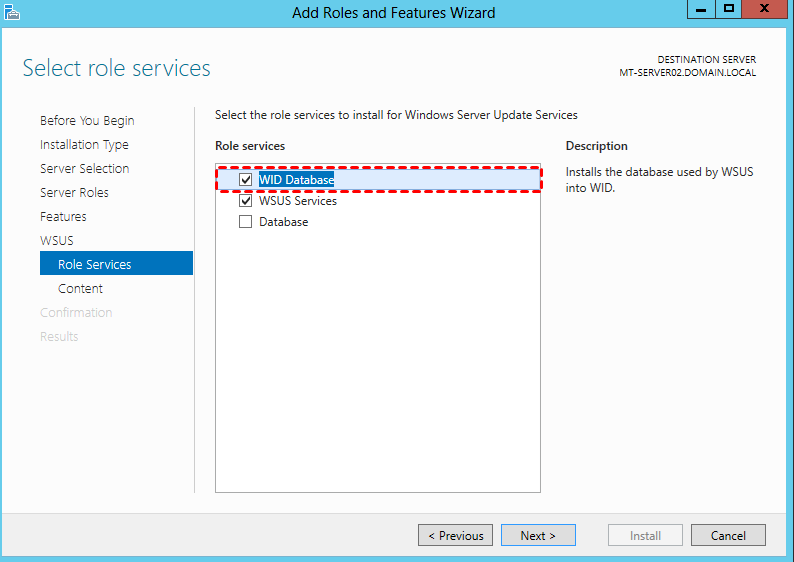

4. The subsequent phase involves configuring fundamental settings for role services. In our scenario, you'll want to select the WID Database and WSUS Services options. If you intend to employ a SQL server, opt for the Database option. By this point, the database server itself should already be in place within your network.

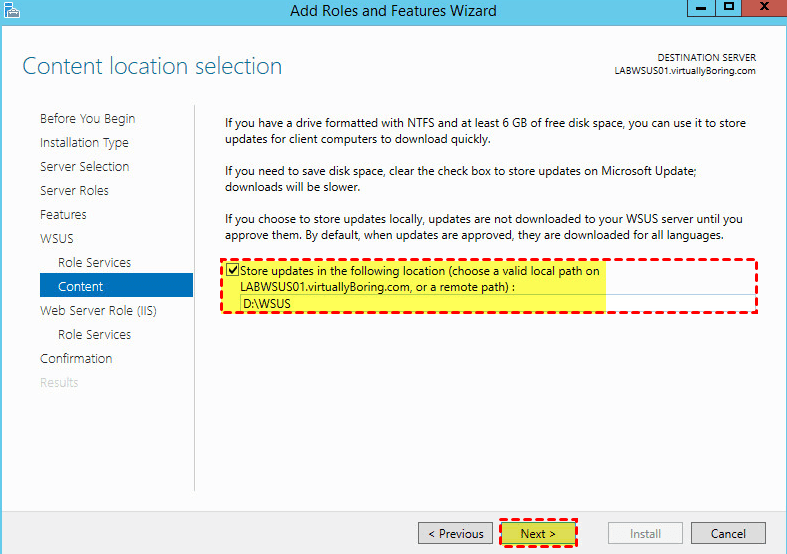

5. The next task entails specifying the location for the update repository. We recommend allocating a dedicated hard disk or disk partition for this purpose.

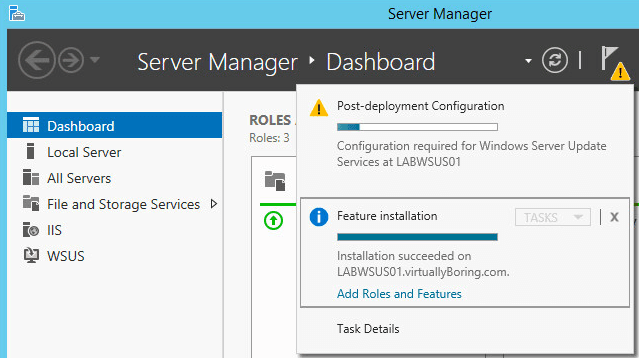

6. Once the installation is complete, click on the yellow exclamation mark within the Server Manager, and select Run after installation tasks. Wait for the process to finalize, indicated by the disappearance of the exclamation mark.

7. Choose the source of synchronization: the Microsoft server or the upstream WSUS server.

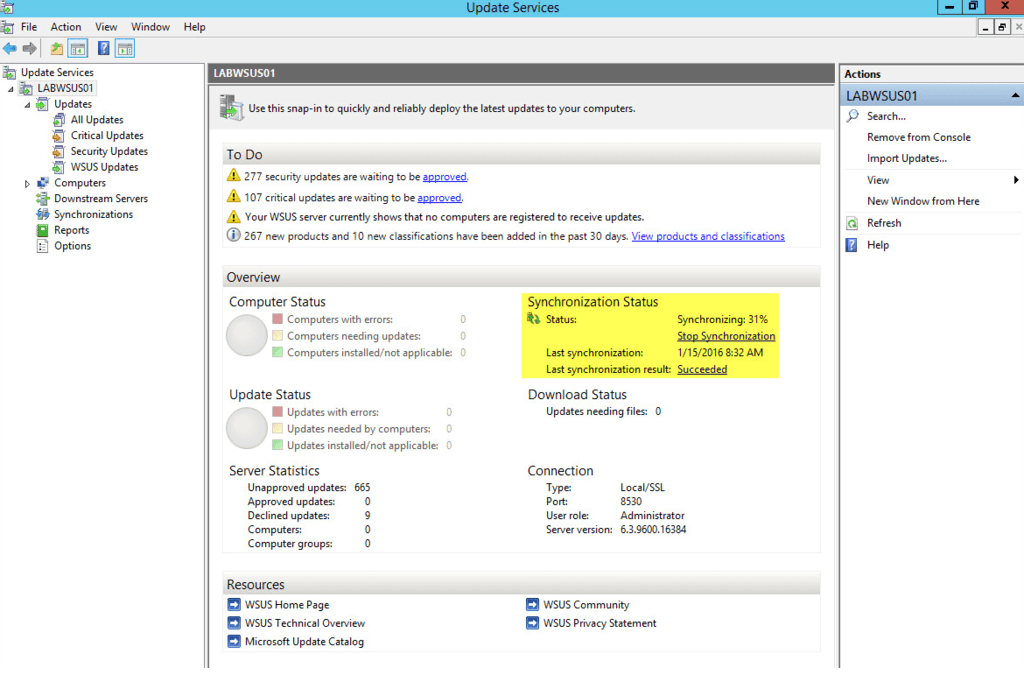

8. According to your need, choose languages, products, classifications and set the parameters for automatic synchronization.

9. Specify rules for automatic approval and proceed to approve updates that have already been downloaded.

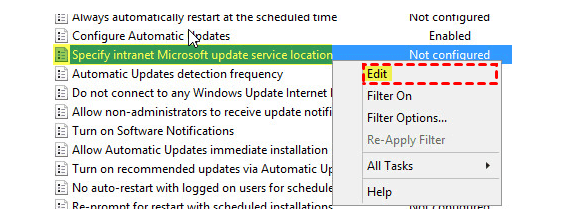

10. Inform client machines about the location of your WSUS server, this can be done via Group Policies: Computer Configuration >> Policies >> Administrative Templates >> Windows Update >> Specify intranet Microsoft update service location.

How to backup WSUS configuration

Backing up WSUS is essential to ensure you can recover your configuration, approved updates, and metadata in case of data loss or system failures. Backing up WSUS involves backup WSUS database and the folder where the update files are stored. Here're step-by-step guides on how to backup WSUS configuration:

Backup the update file storage folder

1. On your WSUS server, click Start, and then click Run.

2. In the Open field, enter %windir%\system32\ntbackup.exe and confirm by clicking OK.

3. Within the Backup or Restore Wizard, proceed by selecting Next.

4. Confirm that Back up files and settings is chosen, then select Next.

5. Click Let me choose what to back up, and then click Next.

6. Under Items to be included in the backup, pick the WSUS folder (usually located at %systemdrive%\WSUS) and click Next.

7. Click on the Browse option to designate the storage location for your backup, provide a name for the backup file, and proceed by clicking Next.

8. If you wish to set additional parameters for your backup, such as specifying it as an incremental backup, enabling backup verification, scheduling recurring backups, or configuring other preferences, select Advanced, and follow the prompts in the wizard.

9. Once the wizard concludes the process, click Finish. Upon receiving the notification that the backup is complete, confirm by clicking Close.

Backup WSUS database

1. On your WSUS server, click Start, and then click Run.

2. Within the Open field, input%systemdrive%\%windir%\system32\ntbackup.exe and then click OK.

3. In the Backup or Restore Wizard, proceed by clicking Next.

4. Confirm that Back up files and settings has been chosen, and then click Next.

5. Click Let me choose what to back up, and then click Next.

6. Under the %systemdrive%\WSUS\MSSQL$WSUS\ directory, select both the Data and LOG folders, and then click Next.

7. Utilize the Browse button to designate a storage location for your backup, provide a name for the backup file, and proceed by clicking Next.

8. If you wish to configure additional parameters for your backup, such as specifying it as an incremental backup, enabling backup verification, establishing a recurring backup schedule, or configuring other preferences, select Advanced, and follow the prompts presented within the wizard.

9. Upon the wizard's completion, select Finish. When you receive the notification that the backup has been successfully created, confirm by clicking Close.

Regular backup for your Windows Server protection

In the realm of Windows Server management, ensuring data protection is paramount. Regularly backing up your Windows Server, including critical components like WSUS, should be a fundamental part of your IT strategy. Data loss, system crashes, and server migrations are just a few scenarios where having a reliable backup can save you from headaches and costly downtime. Protecting your WSUS configuration is a small but significant part of your overall server protection strategy.

AOMEI Cyber Backup stands as a comprehensive and feature-rich Windows Server backup software, designed to meet the evolving data protection needs of businesses and organizations. With a user-friendly interface and a powerful set of backup and recovery tools, it's a trusted solution for ensuring the security and continuity of your Windows Server environment.

◆ Perpetual Free: No time limit for AOMEI Cyber Backup Free Edition.
◆ Easy-to-use: With the user-friendly interface, connect, create task, and protect will be completed with a few clicks.
◆ Automated Execution: Schedule regular backups to occur automatically, ensuring data protection without manual intervention.
◆ Multiple Storage Destinations: Backup to local drive, or network destinations like Windows share or NAS.

You can click the button below to try this reliable and professional software:

* Both free and paid version of AOMEI Cyber Backup support Windows Server 2016/2019/2022/11,10,8,7.

Steps to use AOMEI Cyber Backup for regular Windows Server protection

1. Initially, you need install the AOMEI Cyber Backup Agent on your intended device and establish a connection with the AOMEI Cyber Backup Management Server.

2. Add Device: Access to Source Device >> Windows. If there’s no device you want to backup, you need add Windows device by clicking +Add Windows Device to enter your Device Information and User Information.

3. Create Backup Task: Click Backup Task >> + Create New Task >> Disk Backup. Then specify the backup details, such as: Task Name, Device Name, Backup Content, Target, and& Schedule as you want.

4. Start Backup: You can select Add the schedule and start backup now, or Add the schedule only.

5. Start Restore: From the created backup tasks, locate the backup task you want to restore and click& … >> Restore. Choose to Restore to original location to create the same data directly from the backup.

Conclusion

In conclusion, WSUS is an indispensable tool for managing updates in a Windows Server environment. To ensure the continuity of your update management system and protect against unexpected data loss or server changes, it's essential to know how to backup WSUS effectively.

With regularly backup WSUS configuration, you can maintain control over the update process, save time and resources, and ensure your Windows Server infrastructure remains up to date and secure.
