How to Setup VMware Auto Deploy with PowerCLI Only Three Steps

What is VMware Auto Deploy Setup

VMware Auto Deploy is a feature within VMware vSphere which allows you to deploy and configure ESXi hosts over the network, without the need for manual installation. It is typically used in environments with large numbers of hosts. Also you can choose host profiles to apply the hosts, and a vCenter Server folder or cluster for each host.

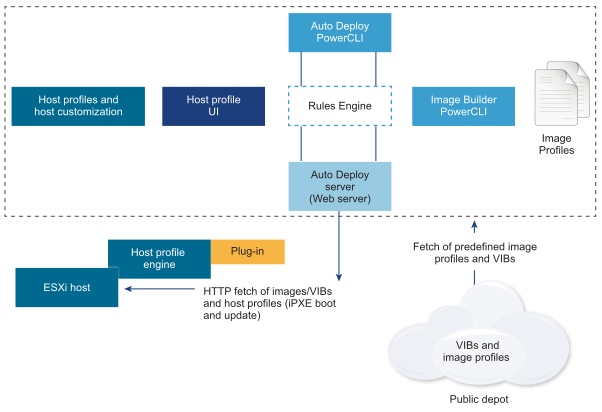

vSphere Auto Deploy Architecture

The architecture of vSphere Auto Deploy is designed to automate the deployment and management of ESXi hosts at scale. It involves several key components that work together to provision hosts dynamically based on predefined rules and configurations. Here is an overview of vSphere Auto Deploy architecture.

• vSphere Auto Deploy server: It’s the core component responsible for provisioning ESXi hosts.
• vSphere Auto Deploy rules engine: Send information about which image profile and which host profile to serve to which host to the vSphere Auto Deploy server.
• Image profiles: Define the ESXi image.
• Host profiles: Define the configuration settings for an ESXi host.
• Host customization: Store information that user provides.

How to Set up vSphere Auto Deploy Step by Step

To have Auto Deploy in VMware, you can achieve mass deployment and can reduce the risk of configuration drift. But when head to setup VMware we need to know the basic things to do before, during and after deployment. Next, are some steps to figure out things ought to do.

Before Setup: Preparation for VMware Auto Deploy

Before you start using vSphere Auto Deploy, you must make sure that the environment can adapt the process and the deployment can go smoothly. Here is a checklist to guide you through the preparation phase.

1. System Requirement

★ vCenter Server: Ensure that you have a functioning vCenter Server, either the Windows-based version or the vCenter Server Appliance.

★ ESXi Hosts: Verify that the ESXi hosts are compatible with the vSphere version you plan to use.

★ vSphere Web Client: Make sure you can access the vSphere Web Client, as this is necessary for managing Auto Deploy.

2. Network Requirement

▶ DHCP Server: A DHCP sever is requiring to assign IP addresses to ESXi hosts during network boot.

▶ TFTP Server: Install and configure a TFTP server the boot files to ESXi hosts. Common TFTP server include Tftpd32 (Windows) or dnsmasq (Linux).

▶ PXE Boot Configuration: Ensure that the ESXi hosts are configured to boot from the network in their BIOS/UEFI settings.

3. Software and Licensing

♦ vSphere Auto Deploy Service: Verify that the Auto Deploy service is installed and running on the vCenter Server.

♦ Image Builder: The Image Builder service should be installed and configured if you plan to create or customize ESXi image profiles.

♦ vSphere PowerCLI: Install vSphere PowerCLI on a management workstation. This is required for creating and managing deploy rules, image profiles and host profiles.

During Setup: Install and Configure VMware Auto Deploy with PowerCLI

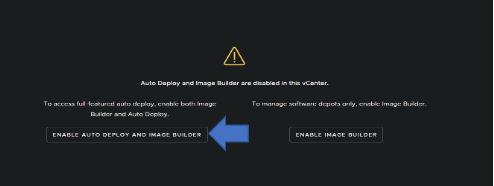

Step 1. Log into the vSphere Web Client, navigate to Administration Auto Deploy Enable Auto Deploy and Image Builder.

Step 2. Verify the DHCP server is correctly providing PXE boot options.

Step 3. Open vSphere PowerCLI and create deploy rules. Use the following PowerCLI cmdlet to write a rule that assigns the image profile to hosts.

Step 4. Configuration the ESXi hosts to boot from the network.

Step 5. Use the vSphere Web Client to monitor the deployment progress.

Tips: You can type cmdlets in PowerCLI

✐ Get help by running Get-Help cmdlet_name.

✐ You can format the output of any variable or cmdlet using Format-List or Format-Table, or their abbreviations f1 or ft.

✐ For additional details, you can use the Get-Help Format-List cmdlet.

After Setup: Post-Installation Tasks

After the deployment is finished, what we need to do is to ensure they comply with the host profile and regularly monitor the Auto Deploy service. With these, we can ensure they remain compliant with the desired configuration and remediate any hosts that do not match the profile settings.

By following these structures of approach to ensure a smooth setup process for VMware Auto Deploy, also can reduce the risk of issues and ensure a successful deployment.

A Security Way to Automate VMware VM Backup

In a large-scale or dynamic environments, it’s an optional idea to setup VMware Auto Deploy. In this way, it can offer you the ability to deploy hundreds or even thousands of hosts simultaneously. With the condition, a security backup solution is what you need.

AOMEI Cyber Backup is an easy-to-use and powerful VMware backup solution which provide you with the needing of virtual environments. It offers comprehensive features for ensuring the security and integrity of your virtual machines (VMs).

😊User-friendly Backup: With intuitive interface, you can easily manipulate the software.
⏰Automated Backup: Configure a backup schedule, and backup tasks will automatically execute at the designated time.
📧Email Notification: Send email and alarms when the task is completed or abnormal.
🎯Centralized Management: You can manage all backups from a single interface. Click the following download button to have the 30-day free trial.

Click the following download button to have the 30-day free trial.

1. Bind Device: Click Source Device > VMware, and then click +Add VMware ESXi and enter the host information to add VMs.

2. Create Backup Task: Click Backup Task to Create New Task, and then select VMware ESXi Backup as the Backup Type. Then set the Task Name, Device, Target, Archive, Schedule and Cleanup according to your need.

3. Start Backup: You can choose Add the schedule and start backup now or Add the schedule only.

Conclusion

VMware Auto Deploy is a powerful tool designed to automate and streamline the deployment of ESXi hosts in large-scale or dynamic vSphere. By leveraging Auto Deploy, it can achieve consistent, scalable, and flexible deployments, ensuring that all hosts are configured uniformly and managed centrally. It’s an invaluable tool for modern data centers, significantly enhances operational efficiency.
