The case: migrate server to new hardware

If your Windows Server machine has been used for years, some hardware issues are likely to arise. To fix the problems, you may consider migrating to a new server with different hardware. Here is a real case from the forum:

“Hi, I'm facing a problem with a small server (Windows 2003) at the company I work at. Functionally, the server is very simple. It has shared document and critical accounting software that might not be compatible with newer versions of Window. There is no AD or firewall or any kind of complicated stuff.

What I need to do is to put that thing into a new physical machine with the least amount of changes as possible. I can't just clone the disk, can I? The drivers would cause a problem, right? What would be the best way to do that? Thanks!”

In order to ensure all applications are compatible with the system on the new server, you can migrate OS to a new server along with the data. Then, what Windows Server migration tools should you choose? Please read on.

How to migrate a server to another server step by step

I’m going to show you how to migrate Windows Server to new hardware with three powerful Windows Server migration tools separately:

👉 #1. Windows Server Backup (Windows tool)
👉 #2. AOMEI Backupper Server (easiest software)🔥
👉 #3. AOMEI Cyber Backup (centralized backup)👍

#1. Windows Server Backup (Windows tool)

Windows Server Backup (WSB) is a backup and recovery tool for Windows Servers which was first introduced in Windows Server 2008. Since it is not installed by default, you need to install it by yourself. Go Server Manager > Add roles and features and follow the Add Roles and Features Wizard to finish the installation.

To move server to new hardware, you need to perform bare metal recovery with the help of WSB. Learn detailed server migration steps below. Take Windows Server 2012 as an example:

1. Run Windows Server Backup on the old server machine and create a backup for bare metal recovery. It is recommended to backup to an external hard drive or network location, so you can access it on the new server machine.

Bare Metal Recovery

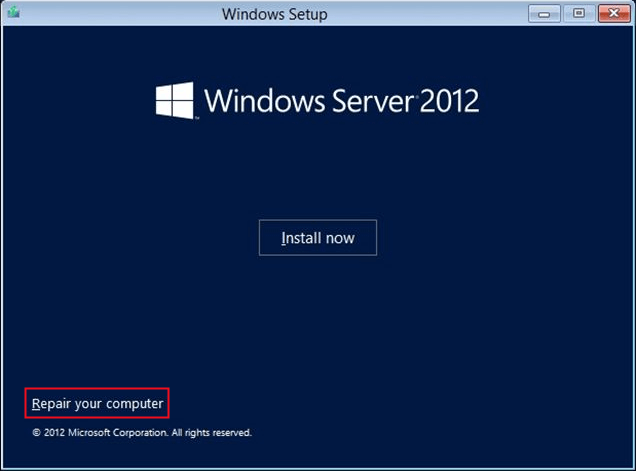

2. Boot the new server with Windows Server 2012 installation media. Select language, time and currency preferences. Then, click Repair your computer.

Repair your computer

3. Select Troubleshoot > Advanced optionsSystem Image Recovery. Then, select the operating system you wish to recover.

System Image Recovery

4. In the “Re-image your computer” screen, select the system image you want to restore and click Next.

Select System Image

✍ Tips:
● The most recent image is selected by default. You may choose another one by clicking Select a system image. In the next screen, you can choose from the list or click the Advanced button to search for an image on the network.
● If the system image is saved on an external drive, connect it to the new server and click Refresh.

5. If you have no problems with the disk format or partition, you can click Next at the “Choose additional restore options” page.

6. Click Finish and then Yes to confirm reimaging your computer. The restore process will begin and could take from a few minutes to a few hours.

✎ Note: The operating system may fail to boot on your new server because of dissimilar hardware of CPU, motherboard or HDD controller. To fix it, you can install additional drivers required for the hardware configuration on your new server.

#2. AOMEI Backupper Server (easiest software)

The whole process of performing bare metal recovery with WSB seems complicated and error-prone. Besides, you may encounter boot issue after restoring to a new server. Is there a superior way to migrate to a new server? AOMEI Backupper Server is the answer.

◈ Wide compatibility
It supports all server systems, including Windows Server 2003/2008(R2)/2011/2012(R2)/2016(R2)/2019/2022. Also, it's applicable in Windows 11/10/8.1/8/7/Vista/XP.
◈ All-around data protection
There are four types of backup available: System/Disk/Partition/File Backup. You are able to backup a full server or just specific folders.
◈ Away from boot issues
With the Universal Restore feature, you can restore the image files to dissimilar hardware without concerning about boot failure, such as migrating Windows Server 2012 (R2) to new hardware.

Learn how to perform Windows Server 2012 backup and restore to different hardware via AOMEI Backupper Server below:

1. Connect a USB drive to the old server machine. Install and run AOMEI Backupper Server to create bootable media with it.

Create Bootable Media

2. Click “Backup” and select “System Backup” to backup the old OS. It is recommended to choose a network location to save the backup image.

System Backup

3. Connect the bootable USB flash drive to the new server machine. Boot from the USB by changing boot order in BIOS.

4. You’ll see loaded AOMEI Backupper Server once login. Click “Restore” and then “Select Image File”.

Select Image File

5. Select “Share/NAS” > “Add Network Location”. Type the network path for the system image and click “OK”. Type username and password if it is needed.

Path Username Password

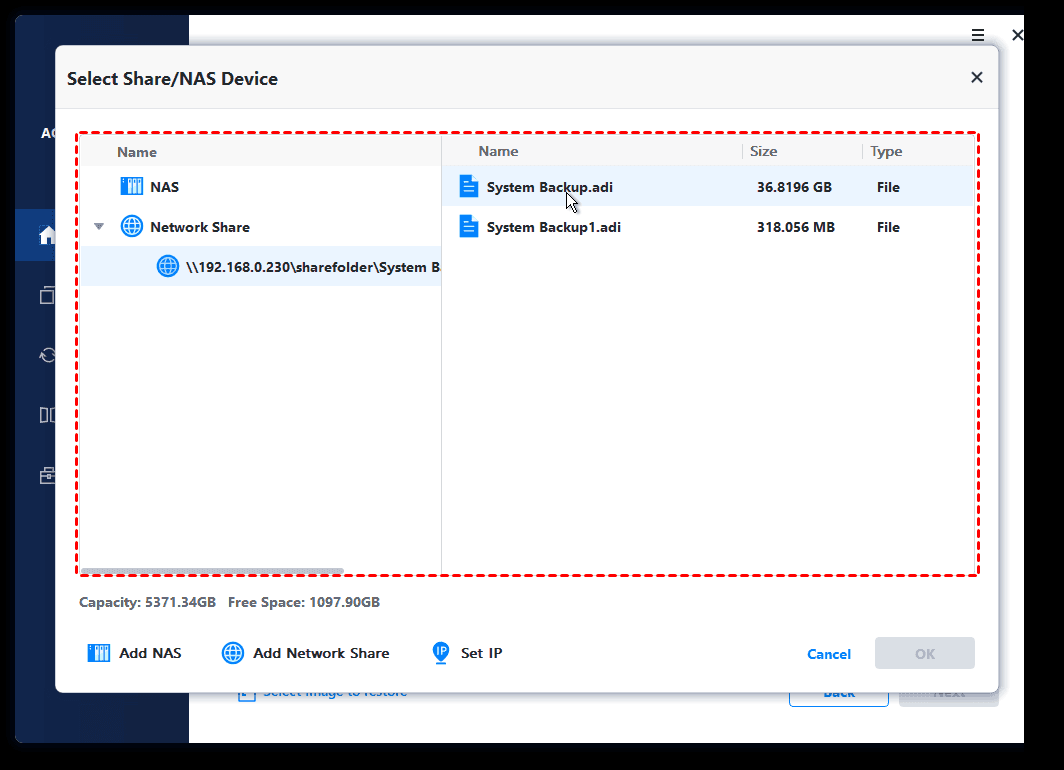

6. Navigate to the image file, select the right image and click “OK”.

Select Image

7. Select “Restore this system backup” and tick “Restore system to other location” in the bottom.

Restore to Other Location

8. Select the drive on the new server as the restoration destination and click “Next”.

Select Destination

9. In the “Operation Summary” page, preview the operation to be executed. Then, tick “Universal Restore” to ensure secure boot and click “Start Restore”.

Universal Restore

✎ Notes:
● If your new server is using an SSD, you can tick “SSD Alignment” to optimize the performance of the SSD.
● After restoring, you may need to install drivers on the new server, such as graphics card driver, audio driver, NIC driver. And then the target computer can be used normally.
● AOMEI Backupper is also professional Windows Server clone software. If you want to upgrade HDD to SSD on your machine, go to Clone > Disk Clone.

#3. AOMEI Cyber Backup (centralized backup)

The best enterprise backup software - AOMEI Cyber Backup can also help you move Windows Server to new hardware. It provides a convenient and reliable solution for centralized backup management of all Windows operating systems.

  • It enables you to create system/disk/partition backup for a bunch of Windows PCs and Servers from one central console.
  • You can schedule a backup task to run daily/weekly/monthly using the full/incremental/differential backup method.
  • You are allowed to restore the backup image to the same computer or another computer with dissimilar hardware.
  • If your backup has multiple versions, you can choose to restore from any point you want.

Download this powerful enterprise backup software now to have a try!

Download Free TrialEasiest Enterprise Backup Software
Secure Download

Let’s say you have backed up old server with AOMEI Cyber Backup. Follow the steps below to move Windows Server to new hardware.

1. Run and log in AOMEI Cyber Backup.

2. Click Source Device Windows Add Windows Device to add the new server device. You need to enter the IP address, username and password of it.

Note: You need to turn on the target device before you add it.

3. Start server migration.

  • Click Backup Task on the left menu bar and click the three dots icon on the system backup task you created before. Then select Restore.

System Restore

  • Select the restore content, including the restore version and restore method. You may choose the latest version and Restore the entire system.

Restore Entire System

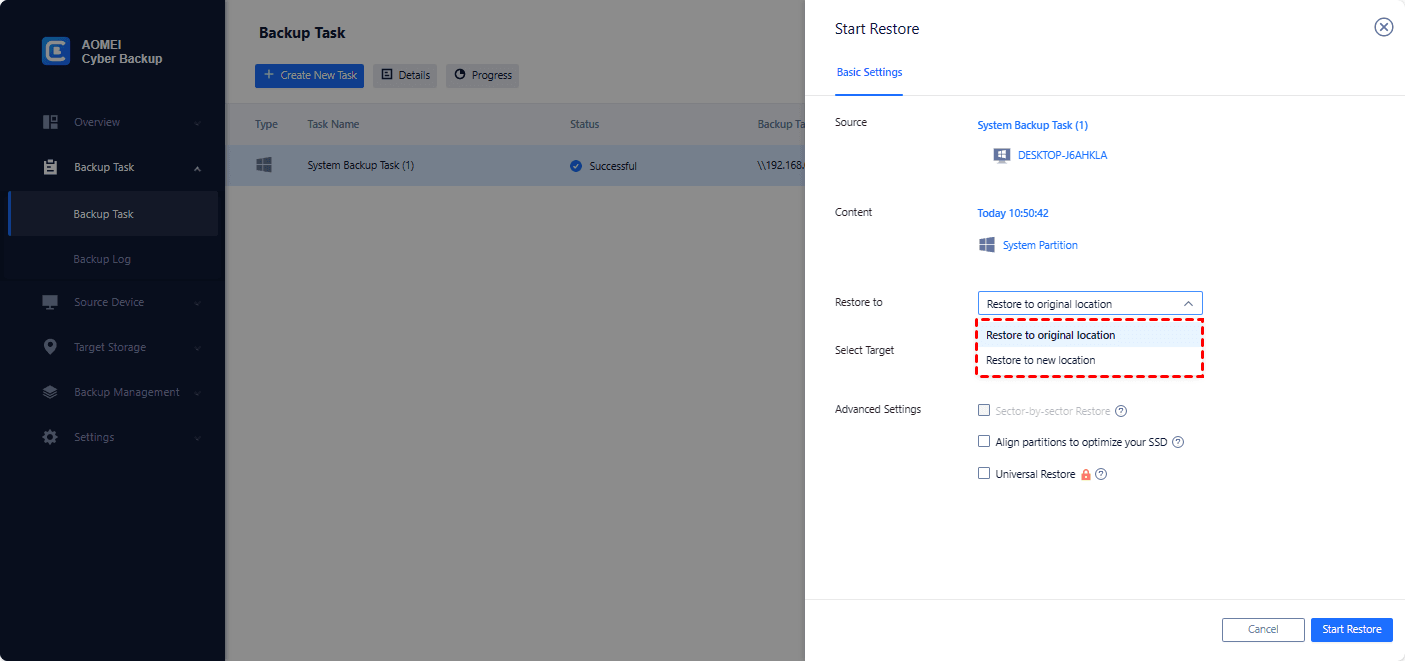

  • Select the target location. Choose Restore to new location and select the target device and target disk.

Restore to New Location

  • Check the Universal Restore option to ensure a secure boot after recovery.
  • Click Start Restore to launch the system recovery process.

Summary

You have learned three efficient solutions to migrate to a new server with different hardware. You can pick Windows Server Backup, AOMEI Backupper Server or AOMEI Cyber Backup to assist you with server migration.

Actually, you can enjoy more practical features in AOMEI Backupper Server. It enables you to do System/Disk/Partition Clone and synchronize files between Windows Servers. Why not give it a try right now?
